Spherical Trigonometry Introduction

In the diagram above, the inner circle represents the Earth and the outer circle represents the celestial sphere.  Point N represents the North Pole, B represents an observer’s position on the surface of the Earth, and U represents the geographical position of a celestial body (the point on the Earth’s surface immediately below the body).  Points P, Z and X represent the projections of points N, B and U onto the imaginary celestial sphere.

In astro navigation, the aim is to find the position of point B in relation to point U and N.  The problem is that you would not be able to see the North Pole (point N) nor would you be able to see point U (the geographical position).  However, you would be able to see the celestial bodies in the sky.  So, although the spherical triangle NBU is inaccessible, you would be able to solve it, in effect, by solving the triangle PZX.  Unfortunately, things are not this simple because the celestial sphere and the surface of the Earth are curved and it follows that lines drawn on those surfaces must also be curved.  Therefore, to solve the triangle PZX we must employ ‘spherical trigonometry’.

The mathematical solution of triangle PZX by spherical trigonometry is lengthy, complicated and gives scope for arithmetical error.  Since time and accuracy are very important for the navigator, tables of computed altitude and azimuth (known as sight reduction tables) are available and these enable us to obtain solutions for all combinations of latitude, declination and hour angle.  However, to fully understand the complexities of navigating on the surface of a sphere, it would be helpful to have a knowledge of ‘spherical trigonometry’ and for this reason, an exposition of the topic is offered in below.

Consider the diagram below:

Cos A   =      d/c    and   d  =  c. Cos A

p2  =  c2 – d2   and  p2  =  a2 – (b-d)2

→   c2 – d2  =  a2 – (b-d)2

→   c– d2  =  a2 – b2 + 2bd – d2

→   c =  a2 – b2 + 2bd

→   c =  a2 – b2 + 2bc Cos. A (since d = c Cos. A)

→  a2  =  b2 + c2 – 2bc Cos. A

This is the cosine rule for ‘flat’ triangles but does this rule also apply to spherical triangles?

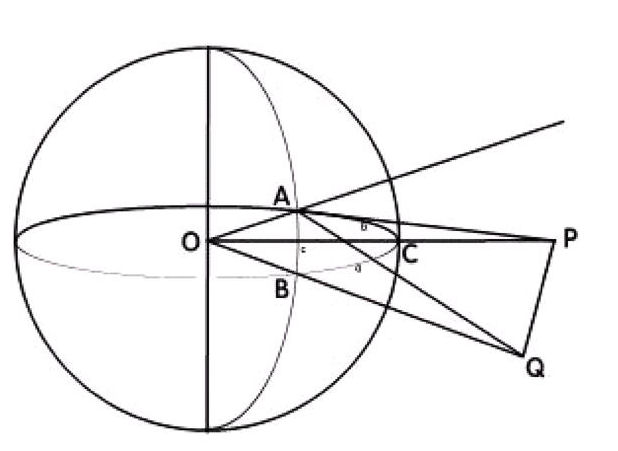

The next diagram shows a spherical triangle ABC formed by the intersection of three circles with their common centre O at the centre of the sphere.

The edges of the ‘flat’ planes in which the sides a, b, & c lie, meet along OA, OQ and OP.

The edges AQ and AP just graze the great circles of the arcs c and b at A;

that is, AQ is the tangent to c and AP is the tangent to b.  So angles OAQ and OAP are really right angles although it is impossible to draw them as such in the ‘flat’.

The edges of the three planes in which a, b, & c lie form a flat (two-dimensional) triangle PAQ, of which the apical angle PAQ is equivalent to the angle A of the spherical triangle.

Now, by the rule for ‘flat’ triangles, we have:

PQ2  =  PO2 + QO– 2PO . QO . Cos(a)

and     PQ2  =  PA2 +  QA– 2PA . QA . Cos(A)

→ [PO2 – PA2] + [QO2 – QA2] -[2PO.QO.Cos(a)]  + [2PA . QA .Cos(A)]  =  0

We also have:

PO2 –  PA2  =  AO2  and    QO2 – QA2  =  AO2

→     PO2 – PA2] + [QO2 – QA2]  = 2AO2

Substituting 2AO2 in the equation gives us:

2PO . QO . Cos(a)  =  2AO2 + 2PA . QA .Cos(A)

Dividing through by 2PO . QO, we have:

Cos(a) =  AO – AO + PA – QA  Cos(A)

PO    QO     PO     QO

=  [Cos(POA) . Cos(QOA)] + [Sin(POA) . Sin(QOA) . Cos(A)]

=  [Cos(b) . Cos(c)] + [Sin(b) . Sin(c) . Cos(A)]

Hence, the formula for finding the third side (a) of a spherical triangle when the other two sides (b and c) are known together with the included angle (A)

is:   Cos(a)  =  [Cos(b) . Cos(c)] +[Sin(b) . Sin(c) .Cos(A)]

(This is the cosine rule for spherical triangles).

In astro navigation, we apply this rule when solving the spherical triangle PZX.  For example, to find the side ZX in the spherical triangle PZX, we have:

Cos ZX  =  [Cos PZ. Cos PX] + [Sin PZ. Sin PX. Cos ZPX]

Practical Example:

Calculate Angle PZX

Cos PZX   =  Cos PX – (Cos ZX. Cos PZ) ÷ (Sin ZX. Sin PZ)

 =  Cos(66o.55)-[Cos(22o.028)xCos(44o.5)] ÷ [Sin(22o.028) x Sin(44o.5)]

= 0.3979 – [0.927 x 0.713] ÷ [0.375 x 0.7]

= 0.398 – 0.66095  ÷ 0.2625

= -0.2629 ÷ 0.2625

= -1

Therefore PZX    = 180o

Therefore Azimuth = N180oE  (since the latitude of the approximate position is north).
